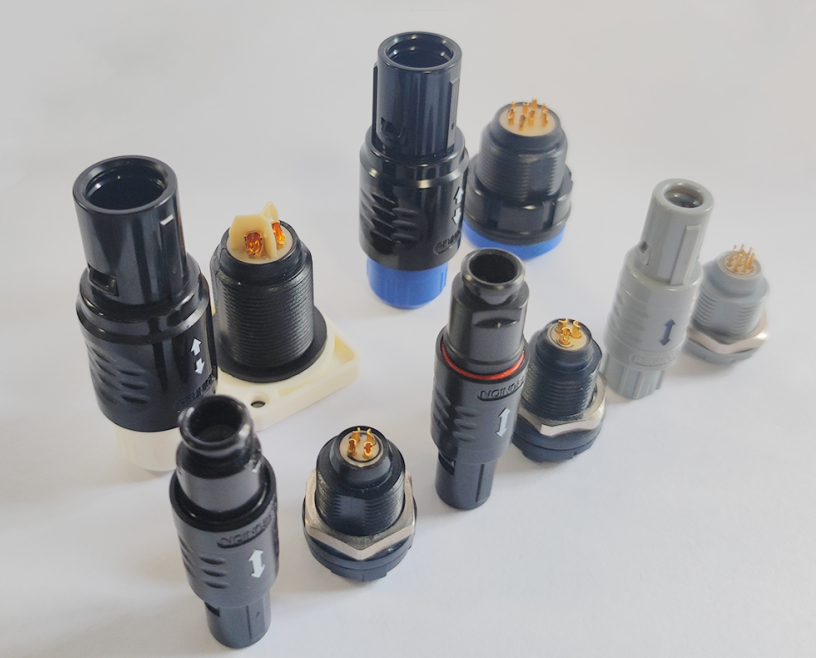

Characteristics and Introduction of Push Pull Self Locking Connectors

he main feature of the threaded modeis that when plugging, you need to twist the plug or socket to make theconnector plug. The structure of this connector is simple and strong. Thedisadvantage is that the threaded connection is easier to wear。The main feature of the buckle is thatthe lock is pushed in, which is convenient and simple.

But this shortcoming isalso more obvious, the connector locking force is very low, gently pull theplug will be pulled out from the socket, more representative buckle connectorsuch as RJ45 crystal head, is our commonly used computer network cable plug。Push and pull the self-locking connectoris locked by pushing in. Pull out the connector according to the main specialpart. The connection mode is similar to the buckle mode, but the push-pullself-locking waterproof has the firmness of thread mode and the simplicity ofbuckle mode. Push-pull self-locking connectors generally combine thecharacteristics of threaded connections and snap connections。

Technical characteristics ofpush-pull self-locking connectors：Voltage: 150V-3500V. According to thedifferent thickness of rubber core and needle core, the voltage is different.Generally speaking, the more cores you have, the smaller the voltage you canwithstand.

The lower the thickness of the gold plating, the lower the voltage。Current: 1A-35A. According to the sizeof the needle core, different sizes of the needle core, can withstand differentcurrents. The larger the needle core, the more current it can withstand。  Insertion and removal times:1000-20000 times. Depending on the material of the locked shrapnel. The numberof inserting and removing of plastic connectors is generally about 1000-3000times.

The shrapnel of the metal connector is made of brass, annealed brass,beryllium bronze, etc. Brass material is generally 3000-5000 times, annealedbrass about 5000 times, beryllium bronze about 5000-20000 times.
